**Bracket on passenger side is not included***

Relentless Fabrication - 2016+ Tacoma High Clearance Rear Bumper (Starting at $1219)

This is the ultimate rear bumper for extreme off road use, offering the maximum departure angles and side clearance while adding some bedside protection, and giving an aggressive and clean look on your Tacoma. Every bumper includes standard recovery points, and includes any necessary installation hardware. *Requires cutting off bed sides at bottom of tail lights.

Each bumper is hand made to order from a CNC cut sheet of steel, then CNC press brake formed and precision MIG welded together by skilled fabricators in our Nevada fab shop. Bumpers are made with a solid 3/16" steel outer shell, with 1/4" mounting plates and solid 3/4" thick through-welded recovery points. Approximate weight is 125lbs base bumper weight.


Key Notes:
- Blind spot monitoring system is not supported and will be removed upon installation
- Factory license plate lights are not compatible. NEW lights will be provided with the bumper at no additional cost. Basic wiring required.
- Extending wiring for 1-2 sensors may be required.
- Does not work with the factory hitch, integrated under mount hitch included with trailer wire relocation bracket standard


For current lead times, pricing, or to order:
CLICK HERE

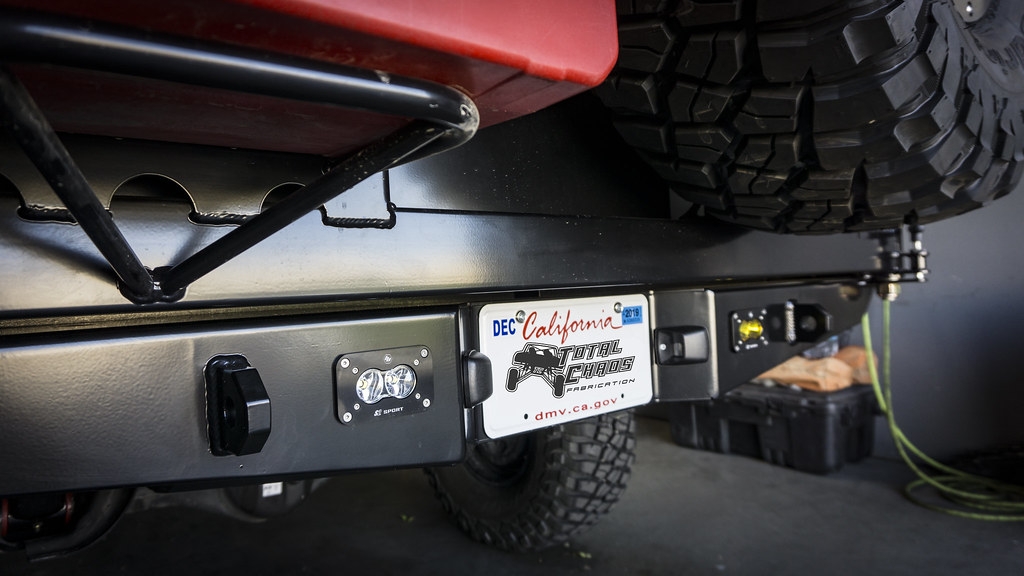

Relentless Fabrication - Rear Bumper Swingout Tire Carrier Add-On (Starting at + $529)

Ordering one of our rear bumpers and need a sturdy way to carry your oversized off-road tires and more? Add this item with your rear bumper order for us to integrate a swing-out tire carrier onto the bumper! *NOT for individual sale

Tire carriers are made out of combination of 1 3/4" x 1/8" thick round DOM tubing, 2x2x.120" square, and 2x3x.120" rect. tubing along with 3/16" steel gussets and 1/4" pivot mount plates. Jerry can holder is formed from 14ga steel (.075"). Pivot spindle is dual shear mounted and grease-able. Default compatibility of up to a 35" tire size on a 4.5" BS wheel.

Bumpers built with tire carries will carry a slightly longer lead time. For more information please visit the link below:
CLICK HERE


- be Relentless
https://www.relentlessfabrication.com


Rob Daman

✓ • Aficionado
Tacoma3G O.G.
Messages
1,431
Upvotes Recieved
1,655
Location
Orange County CA
Truck Year
2017
Truck Color
Quicksand
Truck Grade
Off-Road
Cab & Bed
Double Cab, Short Bed
Transmission
Manual
T3G Member
#112
:cool: nice


Tyler

✓ • Paragon
Badministrator
Tacoma3G O.G.
Messages
6,211
Upvotes Recieved
9,995
Location
Long Island, NY
First Name
Tyler
Truck Year
2017
Truck Color
Quicksand
Truck Grade
Off-Road
Cab & Bed
Double Cab, Long Bed
Transmission
Automatic
T3G Member
#1
Any word on the taillight tubing bumpers getting made?


Relentless Fabrication

relentlessfabrication.com
Authorized Vendor
Messages
200
Upvotes Recieved
251
Location
Sparks, NV
First Name
Relentless
T3G Member
#849
Any word on the taillight tubing bumpers getting made?

We received enough interest over the weekend to start taking deposits/order information for the tail light tubing bumpers. We will be emailing everyone that showed interest in the next couple days. We received more interest than anticipated and will be capping the bumper orders off at 15 for the ones with the tail light tubing.

- be Relentless
https://www.relentlessfabrication.com


Tyler

✓ • Paragon
Badministrator
Tacoma3G O.G.
Messages
6,211
Upvotes Recieved
9,995
Location
Long Island, NY
First Name
Tyler
Truck Year
2017
Truck Color
Quicksand
Truck Grade
Off-Road
Cab & Bed
Double Cab, Long Bed
Transmission
Automatic
T3G Member
#1
I got the email. Let’s gooooooooo!


Relentless Fabrication

relentlessfabrication.com
Authorized Vendor
Messages
200
Upvotes Recieved
251
Location
Sparks, NV
First Name
Relentless
T3G Member
#849

Baja Designs

bajadesigns.com
Authorized Vendor
Messages
198
Upvotes Recieved
313
First Name
Bailey
T3G Member
#736

SOCIOPENGUIN

✓ • Bronze
Messages
4
Upvotes Recieved
3
Location
NW MO
First Name
TATE
Truck Year
2017
Truck Color
Inferno
Truck Grade
Sport
Cab & Bed
Access Cab
Transmission
Manual
T3G Member
#1,299

Tyler

✓ • Paragon
Badministrator
Tacoma3G O.G.
Messages
6,211
Upvotes Recieved
9,995
Location
Long Island, NY
First Name
Tyler
Truck Year
2017
Truck Color
Quicksand
Truck Grade
Off-Road
Cab & Bed
Double Cab, Long Bed
Transmission
Automatic
T3G Member
#1

Mr. Nobody

✓ • Connoisseur
Tacoma3G Supporter
Tacoma3G O.G.
Messages
2,181
Upvotes Recieved
3,027
Location
San Diego, CA
First Name
Andy
Truck Year
2017
Truck Color
Quicksand
Truck Grade
Off-Road
Cab & Bed
Double Cab, Long Bed
Transmission
Automatic
T3G Member
#184
Both are dope. Next Gen needs them Jerry cans in there.
