DIY Fuse Panel

gaterose

4️⃣ Gold
Messages
59
Reaction score
130
Location
San Antonio
First Name
Matt
Truck Year
2017
Truck Color
Blazing Blue Pearl
Truck Grade
Off-Road
Cab & Bed
Double Cab, Short Bed
Transmission
Automatic
T3G Member
#361
I liked the clean look of the aftermarket underhood fuse panels but couldn't justify the cost that some are charging for it so I made my own from clear acrylic sheet.

Started with an 18"x24" acrylic panel from Home Depot


I cut off a 9"x12" piece and used a heat gun, vise, and a couple of plywood scraps to bend the acrylic 90*

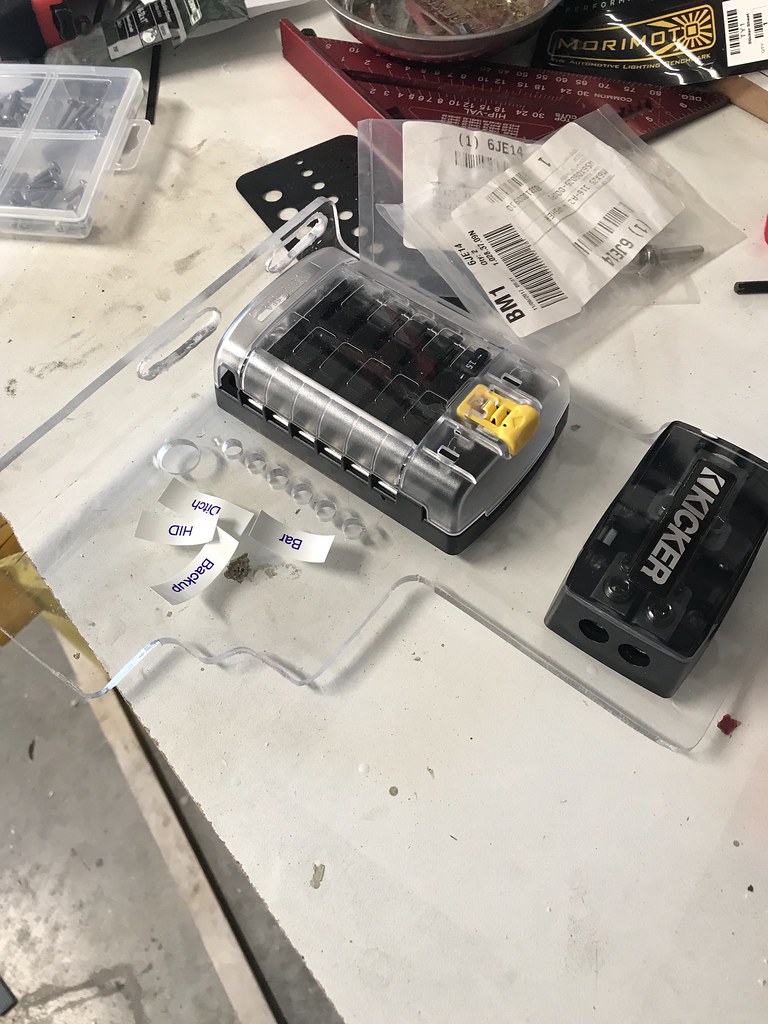

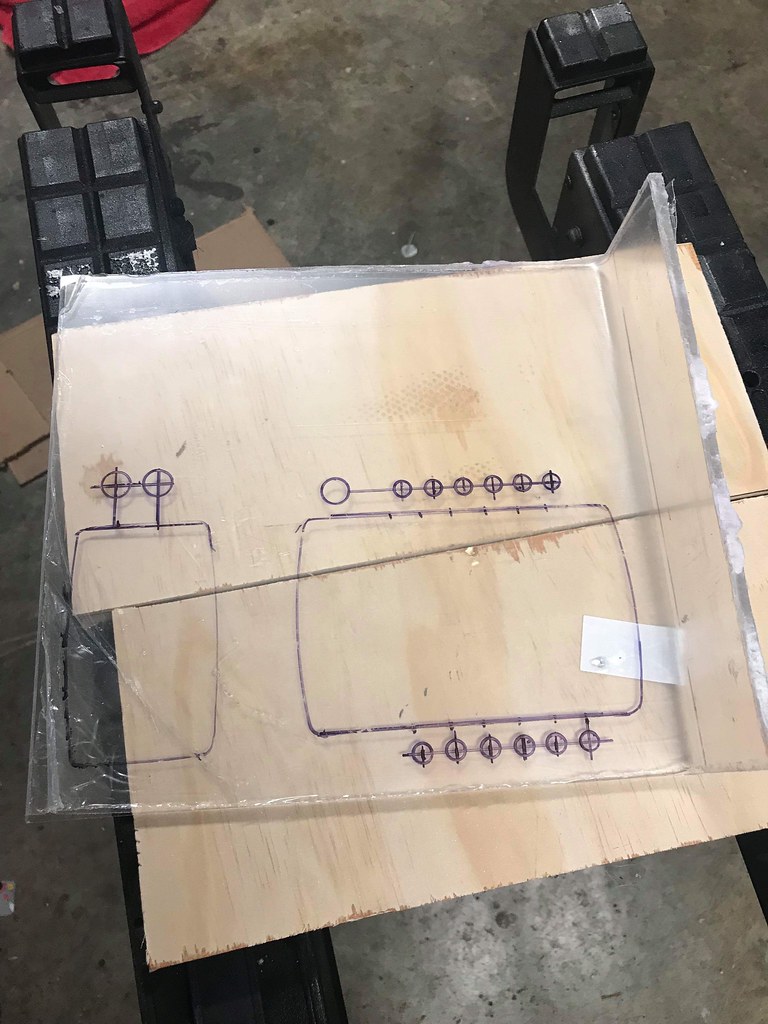

Then I laid out the fuse panel & distribution block in Sharpie

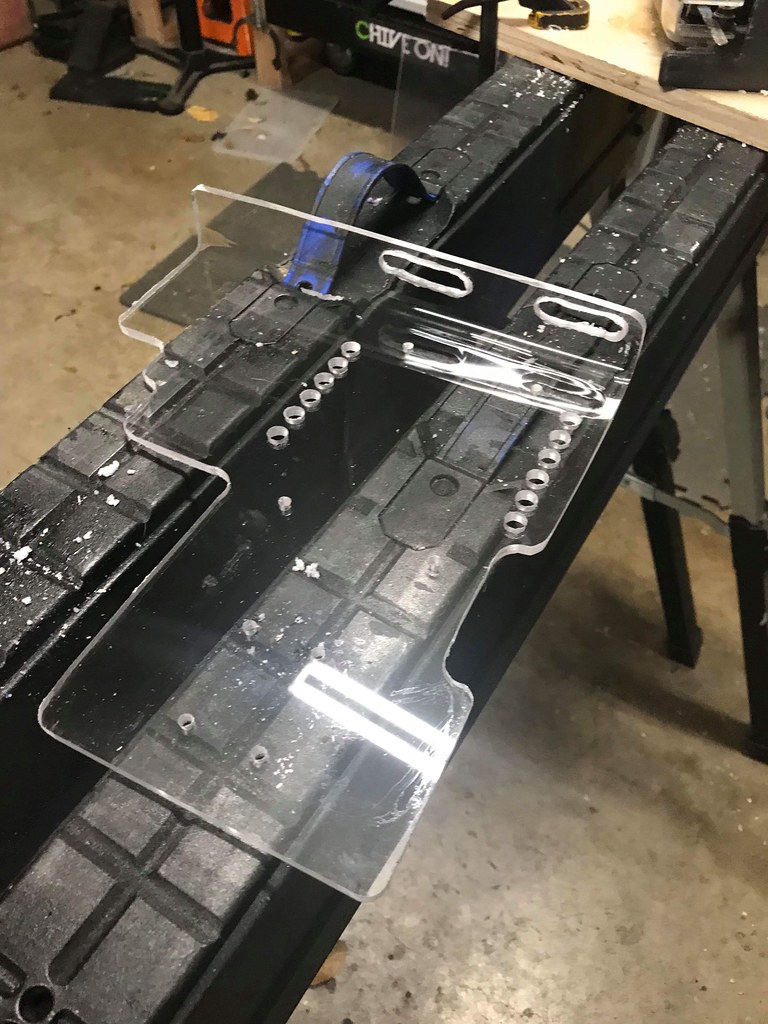

Drilled the holes out and trimmed the piece to around the other components under the hood.


Before mounting under the hood -


Mounted using two existing tapped bolt holes under the hood -




951_yota

5️⃣ Platinum
Tacoma3G Supporter
Messages
327
Reaction score
491
Location
Socal
First Name
Travis
Truck Year
2017
Truck Color
Silver Sky
Truck Grade
Off-Road
Cab & Bed
Double Cab, Short Bed
Transmission
Automatic
T3G Member
#405
Very nice. Here is mine. Will be replacing with switch pro style setup soon. Just need find time to install it.


Tyler

🔟 Mythical
Badministrator
Messages
8,001
Reaction score
15,622
Location
Long Island, NY
Truck Year
2017
Truck Color
Quicksand
Truck Grade
Off-Road
Cab & Bed
Double Cab, Long Bed
Transmission
Automatic
Build Thread
(Build Thread)
T3G Member
#1
This is a really nice alternative to spending the money. Would you like it to be posted in the tutorials bar at the top of the page?


Rob Daman

7️⃣ Connoisseur
Tacoma3G O.G.
Messages
1,431
Reaction score
1,675
Location
Orange County CA
Truck Year
2017
Truck Color
Quicksand
Truck Grade
Off-Road
Cab & Bed
Double Cab, Short Bed
Transmission
Manual
T3G Member
#112
Nice job.


gaterose

4️⃣ Gold
Messages
59
Reaction score
130
Location
San Antonio
First Name
Matt
Truck Year
2017
Truck Color
Blazing Blue Pearl
Truck Grade
Off-Road
Cab & Bed
Double Cab, Short Bed
Transmission
Automatic
T3G Member
#361
This is a really nice alternative to spending the money. Would you like it to be posted in the tutorials bar at the top of the page?
Sure, thanks!


i8boots

2️⃣ Bronze
Messages
23
Reaction score
48
Location
UT
First Name
Bryan
Truck Year
2017
Truck Color
Magnetic Gray
Truck Grade
Off-Road
Cab & Bed
Double Cab, Short Bed
Transmission
Automatic
T3G Member
#431
Mine was much simpler, using a ski strap and a plastic husky box. I used Anderson connectors for the positive and negative cables so it can be easily disconnected for fuse box access:


Attachments

  • IMG_20170304_011439.jpg
    597.7 KB · Views: 81
  • IMG_20170304_011342.jpg
    486.7 KB · Views: 75

951_yota

5️⃣ Platinum
Tacoma3G Supporter
Messages
327
Reaction score
491
Location
Socal
First Name
Travis
Truck Year
2017
Truck Color
Silver Sky
Truck Grade
Off-Road
Cab & Bed
Double Cab, Short Bed
Transmission
Automatic
T3G Member
#405
Selling mine btw see post #3. Currently selling for 175 on ebay. Awesome solution for anyone


951_yota

5️⃣ Platinum
Tacoma3G Supporter
Messages
327
Reaction score
491
Location
Socal
First Name
Travis
Truck Year
2017
Truck Color
Silver Sky
Truck Grade
Off-Road
Cab & Bed
Double Cab, Short Bed
Transmission
Automatic
T3G Member
#405
Mine was much simpler, using a ski strap and a plastic husky box. I used Anderson connectors for the positive and negative cables so it can be easily disconnected for fuse box access:
Nice setup
