[Available Now] AWE 0FG Dual Catback Exhaust for the Gen3 Tacoma 3.5L

Sara/AWE

2️⃣ Bronze
Authorized Vendor
Local time
8:43 AM
T3G Member
#10,047
Messages
9
Reaction score
13
Location
Horsham, PA
First Name
Sara
Instagram
@https://www.instagram.com/awetuningofficial/
YouTube
/https://www.youtube.com/c/awetuning

Presenting the 0FG Catback Exhaust for the Gen3 Tacoma 3.5L;



The sauce for your Taco:
  • A true dual catback from inlets to tips – a first of its kind for Tacoma
  • Handcrafted from dual CNC mandrel-bent 2.5" U.S.-sourced .065” wall T304L stainless steel
  • Bespoke 2.5” H-pipe and tuned mid-muffler combination provide unprecedented tone
  • Features AWE’s patented drone-canceling 180 Technology®
  • Engineered to provide ample clearance for 32” spare tires and aftermarket leaf spring upgrades
  • Modular BashGuard™ is included in every kit to achieve max clearance on the trail
  • Dual 2.5” diameter facilitates superior flow compared to single 3”
  • Factory-matched inlet flanges for ease of installation
  • 4.5” double-walled slash-cut tips available in chrome silver or diamond black
  • Wheelbase extensions are included with every kit
  • Less is more: clean, straight-through design maximizes performance
  • Direct bolt-on for factory-like simplicity
  • Manufactured in-house at AWE
  • AWE No CEL Guarantee
  • AWE Perfect Fitment Guarantee
  • AWE Lifetime Warranty
The 0FG Exhaust



The 0FG is the one-and-only true-dual catback exhaust configuration for the Gen3 Tacoma.

Dual 2.5” American-sourced T304L stainless steel with a wall thickness of .065” runs smoothly from front to back, featuring factory-matched flanges at the inlets, bolting up right after the emissions equipment. A bespoke H-pipe and straight-through mid-muffler work together to produce an unprecedented deep, rasp-free soundtrack out of the Tacoma, with AWE’s patented drone-canceling 180 Technology® resonators keeping drone-prone frequencies in check.





Perfect tone, compliments of AWE 180 Technology®.

Keeping the aggression at the rear of the Taco, and out of the cabin, is AWE’s patented drone-canceling solution, 180 Technology®.

As exhaust gasses exit the 3.5L engine and flow into an AWE 180 Technology® equipped resonator, they pass through strategically located ports, and into reflection chambers. Sound waves, carried by these exhaust gasses, bounce off the walls of the reflection chambers. By controlling the size and location of the ports and the chambers, we also control when the sound waves exit the chambers. The specific timing of when the reflected sound waves rejoin the main exhaust flow creates a one-hundred-and-eighty-degree out-of-phase sound wave that cancels out problematic frequencies.


Bringing up the rear:

Full-bodied aggression remains behind the driver, and complete comfort is achieved in the cabin at cruising speeds, all while unlocking a superior soundtrack and optimal flow compared to a single 3” diameter configuration. Each 0FG Catback features modular extensions for long wheelbase Tacomas, along with BashGuards™ for when things get rocky. You’re looking at not only the Best Sounding Exhaust on the Planet™ for the Gen3 Tacoma 3.5L, but it’s also the most versatile.



BashGuard™:

The 0FG modularity shines at the final breakpoint in the exhaust route. Not only does the 0FG have the ability to accommodate dual 4.5” tips, but it also accommodates AWE’s BashGuard™. What’s BashGuard? Thanks for asking. The AWE BashGuard™ is appropriately equipped with a .125” thick reinforced stainless ring of the exhaust outlet, tucked up really high out of the way of danger. Come as a set of two because it's a true dual.




Tip Options:

All tip options include the AWE logo and double-walling to ensure a mirror finish even under hard usage. The tip outlets, although conjoined, offer vertical adjustability, and the tips themselves are individually adjustable allowing depth into the bumper to be set according to personal taste.
  • 4.5” slash-cut chrome silver tips


  • 4.5” slash-cut diamond black tips


Last edited:

TCOTUE

Diabadass
Tacoma3G Supporter
Local time
7:43 AM
T3G Member
#8,809
Messages
884
Reaction score
2,262
Age
38
Location
Ozark, MO
First Name
Justin
Truck Year
2018
Truck Color
Blazing Blue Pearl
Truck Grade
Sport
Cab & Bed
Double Cab, Short Bed
Transmission
Automatic
Instagram
@tcotue
That's the best looking exhaust I've seen!


zsmith4472

6️⃣ Aficionado
Local time
8:43 AM
T3G Member
#9,729
Messages
512
Reaction score
921
Age
20
Location
SE Connecticut
First Name
Zach
Truck Year
2017
Truck Color
Blazing Blue Pearl
Truck Grade
Off-Road
Cab & Bed
Access Cab
Transmission
Automatic
Instagram
@zsmith4472
But how does it sound..?


ct__tacoma

4️⃣ Gold
Tacoma3G Supporter
Local time
8:43 AM
T3G Member
#7,387
Messages
129
Reaction score
137
Location
Connecticut
First Name
Joel
Truck Year
2017
Truck Color
Blazing Blue Pearl
Truck Grade
Sport
Cab & Bed
Double Cab, Short Bed
Transmission
Manual
Instagram
@ct__tacoma
Lived in Horsham for grad school. I think it’s a sign that I need to start saving pennies for this system...


Trudog

6️⃣ Aficionado
Rig of the Month (2x)
Tacoma3G Supporter
Local time
5:43 AM
T3G Member
#4,193
Messages
346
Reaction score
540
Location
Sammamish WA
First Name
Kittrell
Truck Year
2016
Truck Color
Quicksand
Truck Grade
Off-Road
Cab & Bed
Double Cab, Long Bed
Transmission
Automatic
Instagram
@trudogtrails
Awesome product but I would have to cut it at the rear axle / no rear clearance :ROFLMAO:


Sara/AWE

2️⃣ Bronze
Authorized Vendor
Local time
8:43 AM
T3G Member
#10,047
Messages
9
Reaction score
13
Location
Horsham, PA
First Name
Sara
Instagram
@https://www.instagram.com/awetuningofficial/
YouTube
/https://www.youtube.com/c/awetuning
Awesome product but I would have to cut it at the rear axle / no rear clearance :ROFLMAO:

BashGuards™ are included with every kit so you can run without that entire rear tip section.

All the clearance you'll need :cool:


Veggie Taco

1️⃣ Getting Started...
Local time
5:43 AM
T3G Member
#6,395
Messages
2
Reaction score
0

Sara/AWE

2️⃣ Bronze
Authorized Vendor
Local time
8:43 AM
T3G Member
#10,047
Messages
9
Reaction score
13
Location
Horsham, PA
First Name
Sara
Instagram
@https://www.instagram.com/awetuningofficial/
YouTube
/https://www.youtube.com/c/awetuning

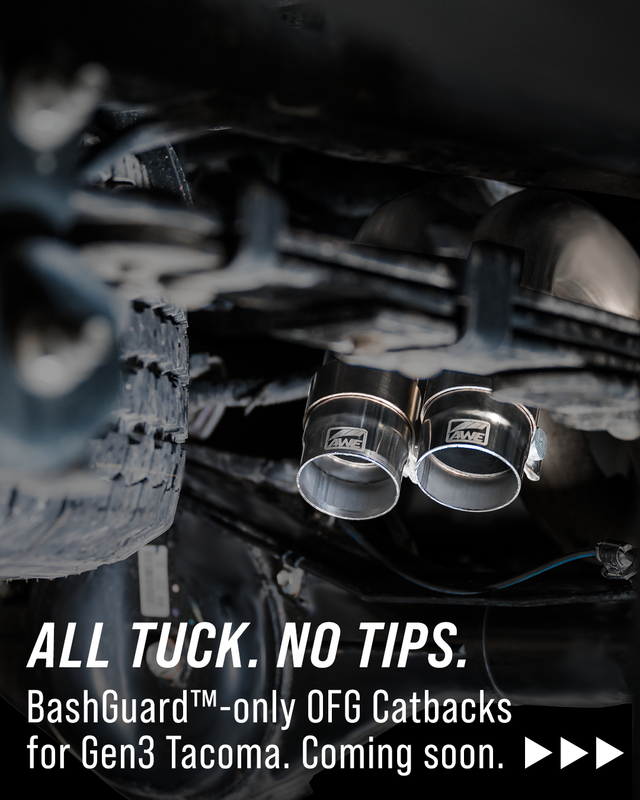

For those who like their Tacos tipless with maximum clearance.

AWE BashGuard™-only 0FG Catback Exhausts for Gen3 Tacoma, coming soon to www.AWETaco.com and the AWE Dealer Network.
