bladwin's '17 DCLB flatbed build

Bladwin

2️⃣ Bronze
Joined
Nov 24, 2020
Messages
15
Reaction score
25
Location
WA
2017 TRD OR DCLB Auto
Quicksand

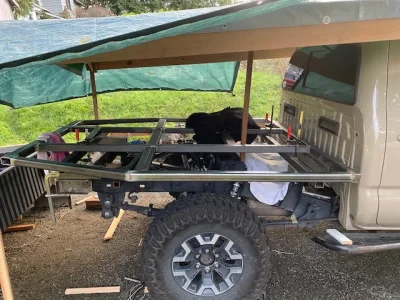

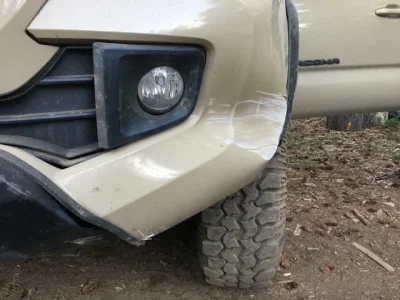

Howdy folks! I got this guy in spring of '19. It came with the stubby front bumper and a Warn as well as LED Headlights which was great. I slapped some AP sliders on it and braved the Naches Trail here in WA, folding stock skids and leaving bits of bumper trim along the way. Next summer I added some CBI skids and fabbed a little platform. On the same route I met a stump on the drivers side and put a small gouge in my bed along with some minor fender re-alignment...

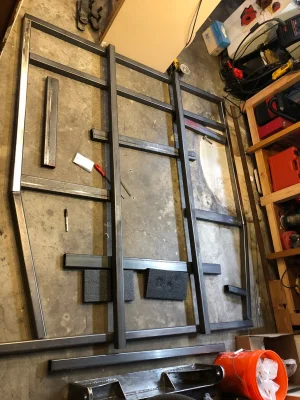

I had been slowly saving and buying the pre-required lift components and finally got that in mid Nov. Which was really exciting as then I could start on the flatbed! (that gouge bothered me)

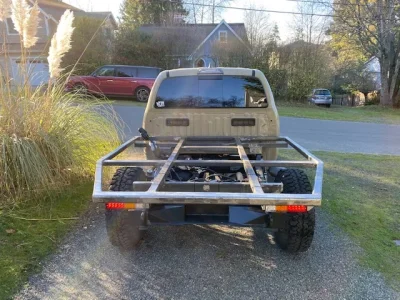

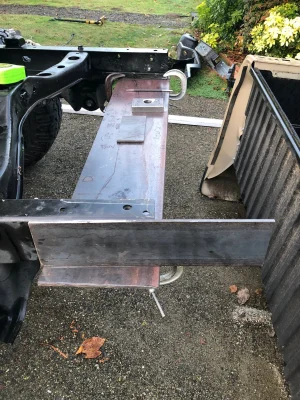

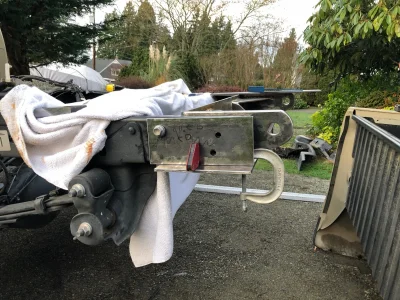

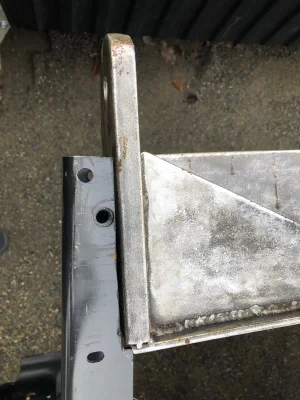

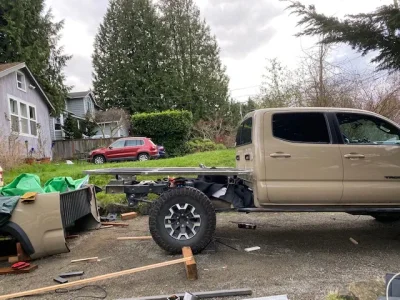

I had built a bumper center for my '91 Suburban (for sale...) that was never installed. I stuck it in my frame and then encased it in 1/4" and 3/16" and then started hand wringing about the bed design. Main frame is together, temp mud flaps, and wheel well cover and some lights on to make it drivable and miles of work ahead of me! I wish I wasn't Feb and that I had a garage of even a car port. I got the skeleton of the headache rack close to done. I'll post more pics...

Looking fwd to forum life


Attachments

  • 0720191822a_HDR_Original.jpg
    199 KB · Views: 387
  • IMG_20190719_124610_Original.jpg
    170.7 KB · Views: 377
  • 63337953553__A44206FA-30F2-4FF8-9DC8-D78C226BEA6E.jpg
    155.9 KB · Views: 374
  • IMG_5054.JPG
    114.4 KB · Views: 354
  • IMG_5103.JPG
    125.2 KB · Views: 374
  • IMG_5150.jpg
    679.5 KB · Views: 382
  • IMG_5153.jpg
    556 KB · Views: 368
  • IMG_5157.jpg
    773.3 KB · Views: 318
  • IMG_5158.jpg
    528.3 KB · Views: 322
  • IMG_5161.jpg
    682.2 KB · Views: 337
  • IMG_5179.jpg
    744.9 KB · Views: 355
  • IMG_5203.jpg
    139 KB · Views: 351
  • IMG_5211.jpg
    145.7 KB · Views: 388
  • IMG_5230.jpg
    148.7 KB · Views: 399
  • IMG_5233.jpg
    154 KB · Views: 405
Last edited:
Welcome aboard.

I've always admired you guys who have the ability to cut and weld your rigs...and a little envious that you live where the trails and lifestyle work for that. Hope to get out there some day.

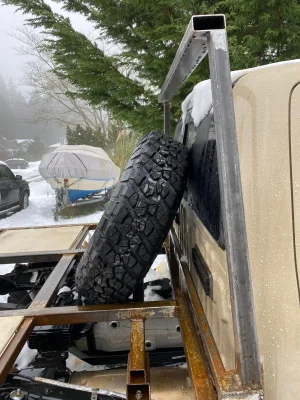

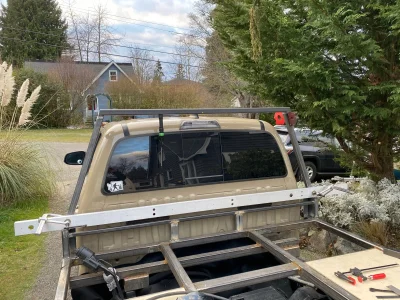

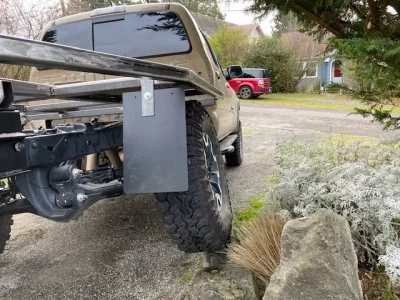

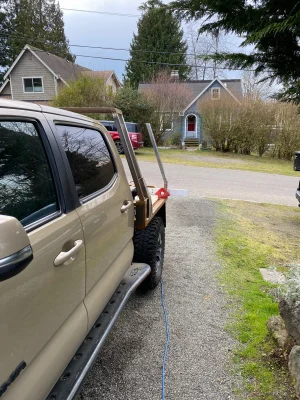

Thanks for the welcome. TacomaDad18, yours is like one of three 3rd gen bed builds that I've seen. Looks great! It's been a daunting process for my caveman welding skills. Here's what I got done on the headache rack before the snow...


Attachments

  • IMG_5261.jpg
    759.7 KB · Views: 384
  • IMG_5268.jpg
    660.9 KB · Views: 438
  • IMG_5269.jpg
    668.8 KB · Views: 383

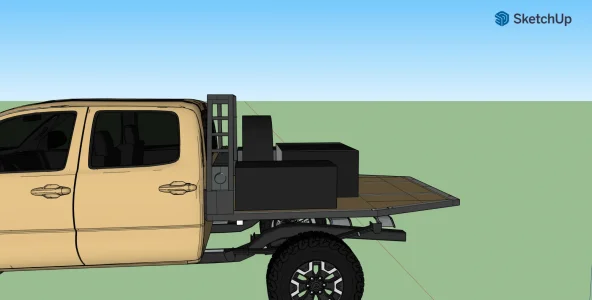

This is where I'm trying to get to by May...

Under the bed I have a battery, compressor, air tank and water tank and all the wiring plus the fuel door to do as well!


Attachments

  • Taco FB3.png
    Taco FB3.png
    575.6 KB · Views: 439
This is where I'm trying to get to by May...

Under the bed I have a battery, compressor, air tank and water tank and all the wiring plus the fuel door to do as well!

It is so much work but keep on going. I like it.

I am so new to welding it’s not even funny lol. I just enjoy it when I have the time.

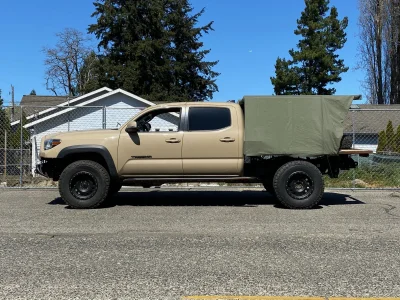

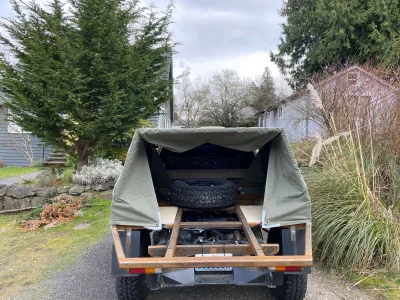

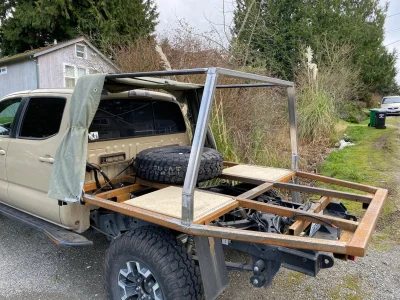

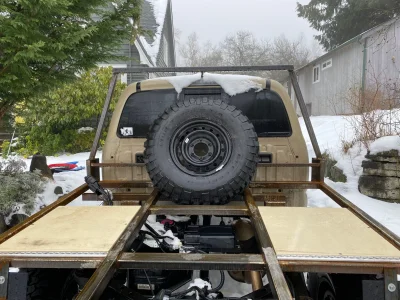

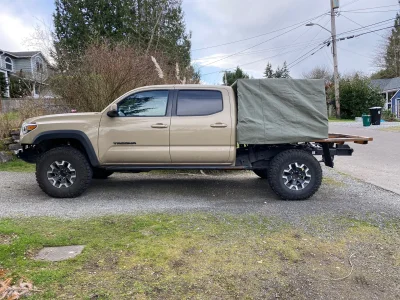

Plugging away. Stoked to get the main frame together today! Messing around with this canvas...


Attachments

  • IMG_5297.jpg
    756.9 KB · Views: 340
  • IMG_5306.jpg
    862.6 KB · Views: 337
  • IMG_5307.jpg
    917.3 KB · Views: 346
  • IMG_5309.jpg
    940.6 KB · Views: 388
  • IMG_5310.jpg
    938.3 KB · Views: 353
  • IMG_5314.jpg
    909.5 KB · Views: 382
  • Taco FB4.png
    Taco FB4.png
    619.9 KB · Views: 481
Loving this flatbed build!!! I too will soon be following in your footsteps as soon as i sell my Taco bed! Ill be watching this build, and keep up the great work.

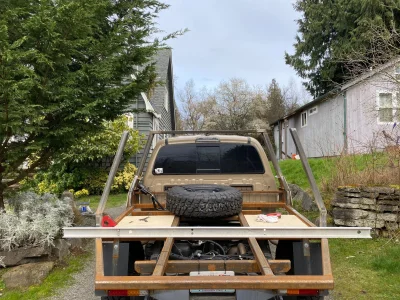

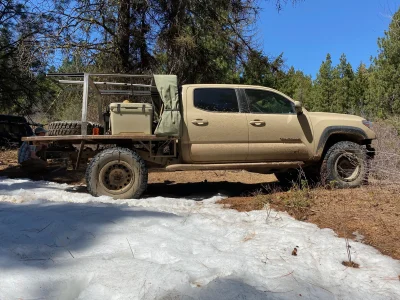

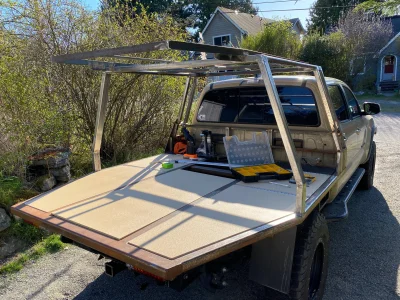

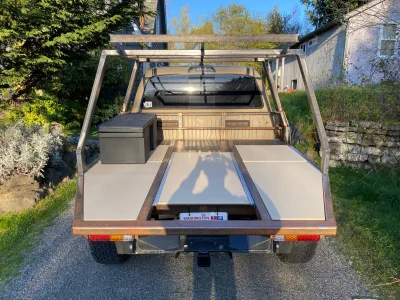

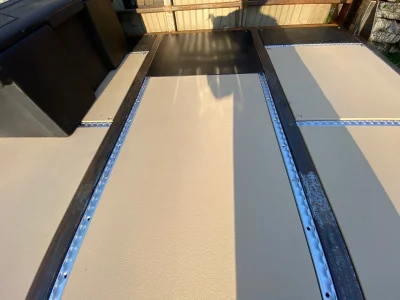

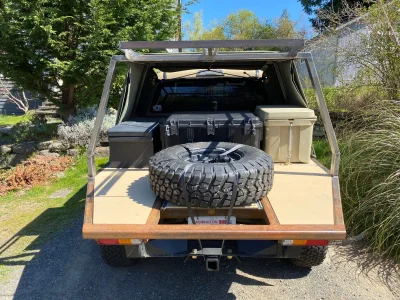

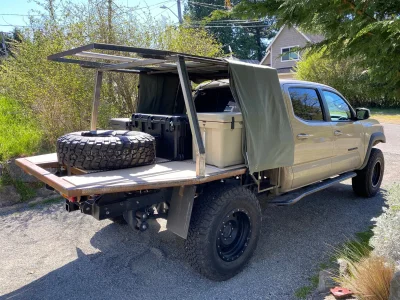

I got stuff done! I had a bunch of boring gusseting to get through which was slow going due to life and weather but finally got the top rack frame basics done and hugely, the bed laid!

I found a darker beige hdpe which turned out great but I'm 10" short in that center section. I may weld in plate, we'll see. I got one box bolted to the L-track, need to order another and then tomorrow I should get a big SKB box mounted in the center. I have the track spaced on the side so that i can ditch a box and turnbuckle my cooler in there. Still tons to do but I'm under funded and over budget.

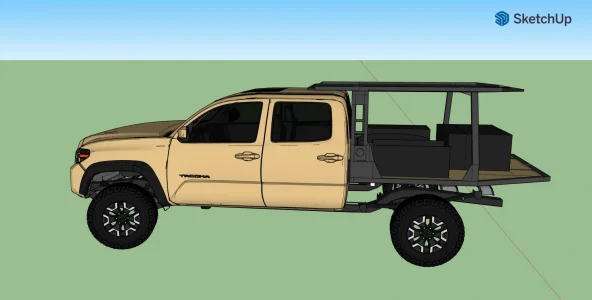

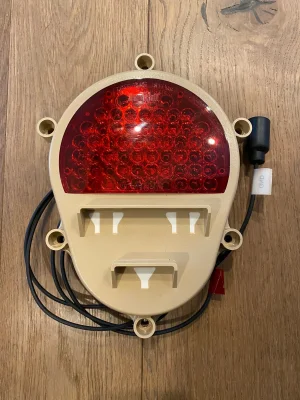

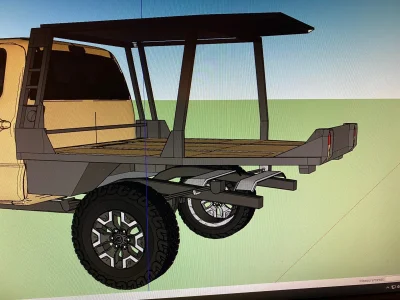

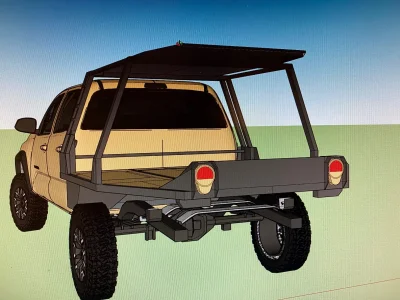

I'd like your opinions, I need to replace the tail lights. (It's a long story) I came across the HWMMV tail lights and got real excited. I need to mount them. They're big and won't go underneath without interfering with my shackle points... I drew up the examples... Does it look weird? The center section could be a tailgate... What do you think?


Attachments

  • IMG_5387.jpg
    913.2 KB · Views: 359
  • IMG_5384.jpg
    490 KB · Views: 328
  • IMG_5383.jpg
    889.7 KB · Views: 342
  • 64005287454__B3EBED90-C777-4725-B7C5-15048B3A8438.jpg
    912.6 KB · Views: 314
  • IMG_5362.jpg
    667.6 KB · Views: 307
  • IMG_5361.jpg
    693 KB · Views: 306
  • IMG_5339.jpg
    586.7 KB · Views: 313

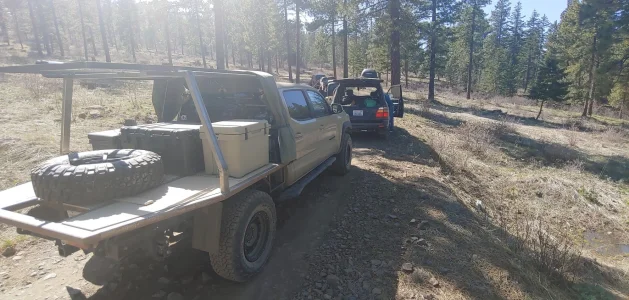

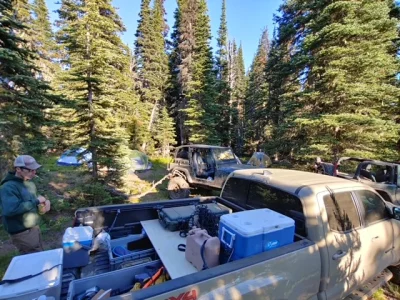

Got dirty this weekend. Good to try it out, need to change some tings.


Attachments

  • 0417210737-PANO.jpg
    276.3 KB · Views: 318
  • 0416211519.jpg
    509.3 KB · Views: 369
  • IMG_5402.jpg
    822.2 KB · Views: 1,183
  • image0.jpeg
    303.9 KB · Views: 336
  • IMG_5396.jpg
    673.2 KB · Views: 404
